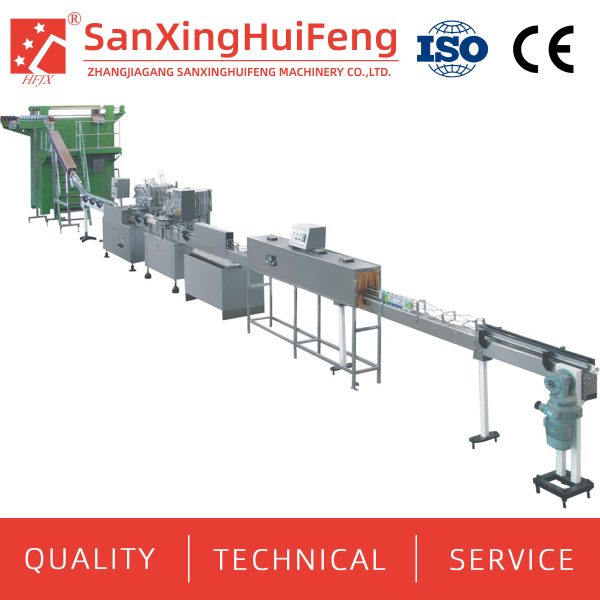

It is the preferred equipment for the medium beer and beverage plant. And we are able to provide the complete pop cans/tin can filling and package solution, from can depalletizer, can rinsing machine, can filling & sealing monoblock machine, leakage check, liquid nitrogen dosing machine, pasteurizer tunnel, blow dryer, carton package, film package system, which is widely used for the beverage, beer, juice industry and so on.

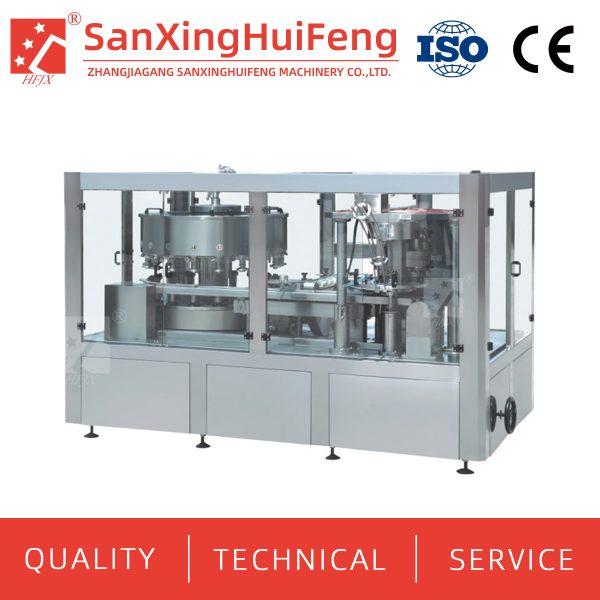

Can filling and sealing machine
Equipment composition
The filling machine is mainly composed of a filling cylinder and a filling valve. After the can body is cleaned, it is sent to the filling machine through the middle star wheel. The star wheel clamps the can body and sends it to the filling machine. The base supports the can body to rotate around the filling machine, the roller opens, and the liquid enters the can body.
Filling principle:
The filler and filling valve of this machine are isobaric filling, with slow speed, high precision, and guaranteed filling volume.
Filling valve
The filling valve is one of the key components of the filling machine. The filling valve consists of a valve core, a valve body, a valve seat, an umbrella-type wide liquid valve, etc.
3.1. When the can body enters the tank seat plate from the middle star wheel, the filling valve drives the valve sleeve, and the valve core moves up accordingly. At this time, the 0-type roller 1 is disengaged from the valve seat and enters the filling area.
3.2. The material continues to move downward until the bottle is filled. When the roller performs cam movement, the filling valve moves upward, and the 0-type roller 1 presses the valve body, so that the material no longer enters the valve cylinder of the valve core.
Sealing Machine
1. Equipment composition
The capping machine consists of a frame, a guide rail, a capping device, a transmission device, etc.
The transmission device of the capping machine is transmitted to the gear by the reducer, and the power is transmitted to the capping head through the hollow main shaft.
The can body does not rotate, and the four small rollers rotate the cap. The cam does not move. The bottle cap is sent into the gear ring of the capping head through the stirring device and the guide rail. When there is a can on the conveyor belt, as the capping head rotates, the cap moves downward and screws the cap on the can mouth.
| Model | XDF12-1 | XDF18-4 | XDF32-6 | XDF40-6 | XDF54-6 |
| Capacity(cans/hour) | 2000 | 8000 | 15000 | 20000 | 30000 |
| Suitable container | Aluminum Can / Tin Can / Plastic Can | ||||
| Can diameter | Dia50 ~dia99mm | ||||
| Can height (mm) | 70-175mm | ||||
| Compressor air | Isobaric filling /normal pressure filling | ||||
| Application | Beverage Can Filling Machine | ||||
| Total power (kw) | 2.4kw | 4.4kw | 6.2kw | 7.2kw | 16kw |
| Overall dimensions | 2.5*1.9m | 2.8*1.9m | 3.2*2.5m | 3.8*2.8m | 3.8*2.8m |
| Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m |
| Weight(kg) | 2500kg | 3200kg | 4500kg | 6500kg | 10000kg |
| No | Name | Brand |
| 1 | Motor | China |
| 2 | Motor in cap sorter | China |
| 3 | Rinsing pump | Nanfang, Hangzhou |
| 4 | Magnetic valve | Airtac, Taiwan |
| 5 | Cylinder | Airtac, Taiwan |
| 6 | Air parts | Airtac, Taiwan |
| 7 | Frequency convertor | Siemens |
| 8 | Transformer | China |
| 9 | Photoelectric switch | AUTONICKS |
| 10 | Proximity switch | AUTONICKS |
| 11 | PLC | Siemens |
| 12 | Touch screen | Siemens |
| 13 | Pnuemtic parts | Airtac, Taiwan |
| 14 | AC contactor | Schneider |
| 15 | Microrelay | Schneider |
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
Q: Are you a trading company or a manufacturer?
A: We are a direct-operated factory located in Zhangjiagang City so we can provide you with high-quality machines at a reasonable price, welcome to visit us.
Q: Are all your products produced by yourself or compressed by purchasing other products?
A: We have independent R&D and production teams focusing on manufacturing machines, and we have our own processing center, and all products are manufactured by our technical team.
Q: What is the capacity of your factory?
A: About 100 production lines per year.
Q: How about spare parts?
A: We will send one year’s worth of easily damaged spare parts with the machine and ship them together. During the warranty period, we will provide spare parts at a cost including freight.
Q: How long does it take to install?
A: According to your machine order, we will send one or two engineers to your factory, which takes about 5 days to 25 days.
Q: How to install the machine after it arrives?
A: We will send engineers to your factory to install the machine and train your employees how to operate the machine.
Q: When can I get the machine after payment?
A: Usually the production time is about 30-60 days, depending on the type of machine you ordered. The shipping time is subject to your port of destination.
Q: If we buy your machine, what is your guarantee or warranty on the quality?
A: We provide you with high-quality machines with a 1-year warranty and lifetime technical support.
