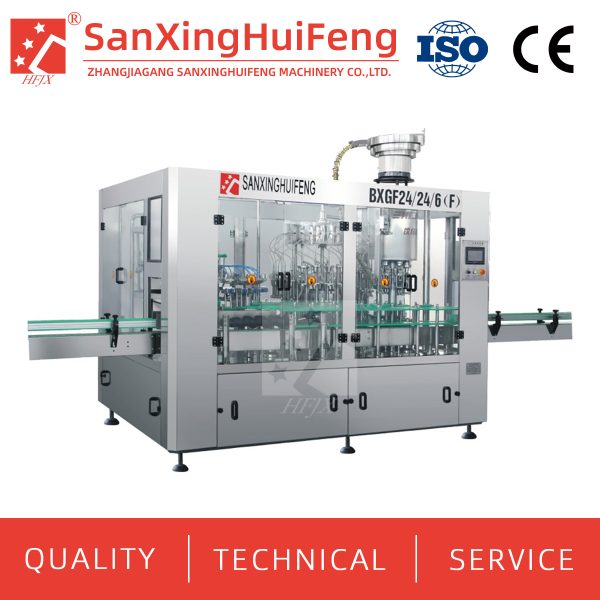

GLASS BOTTLE Beer FILLING MACHINE

Overview

BGF series beer filling machine has rinsing filling capping function combined in one machine. it suits for crown cap, pull ring cap, aluminum cap. it adopts advanced technologies of one time vacuum, two times vacuum, blowing foam structure, exhaust. it reduces the oxygen of beer bottle and make beer taste more better.

Video Description

Description

We have developed the latest BXGF series glass bottle beer washing filling capping 3-in1 machine in accordance with the technological requirements for packaging beer in glass bottle by adopting advanced technologies both at home and abroad. Meanwhile, we are able to provide complete high-efficiency beer filling production line for the beer breweries.

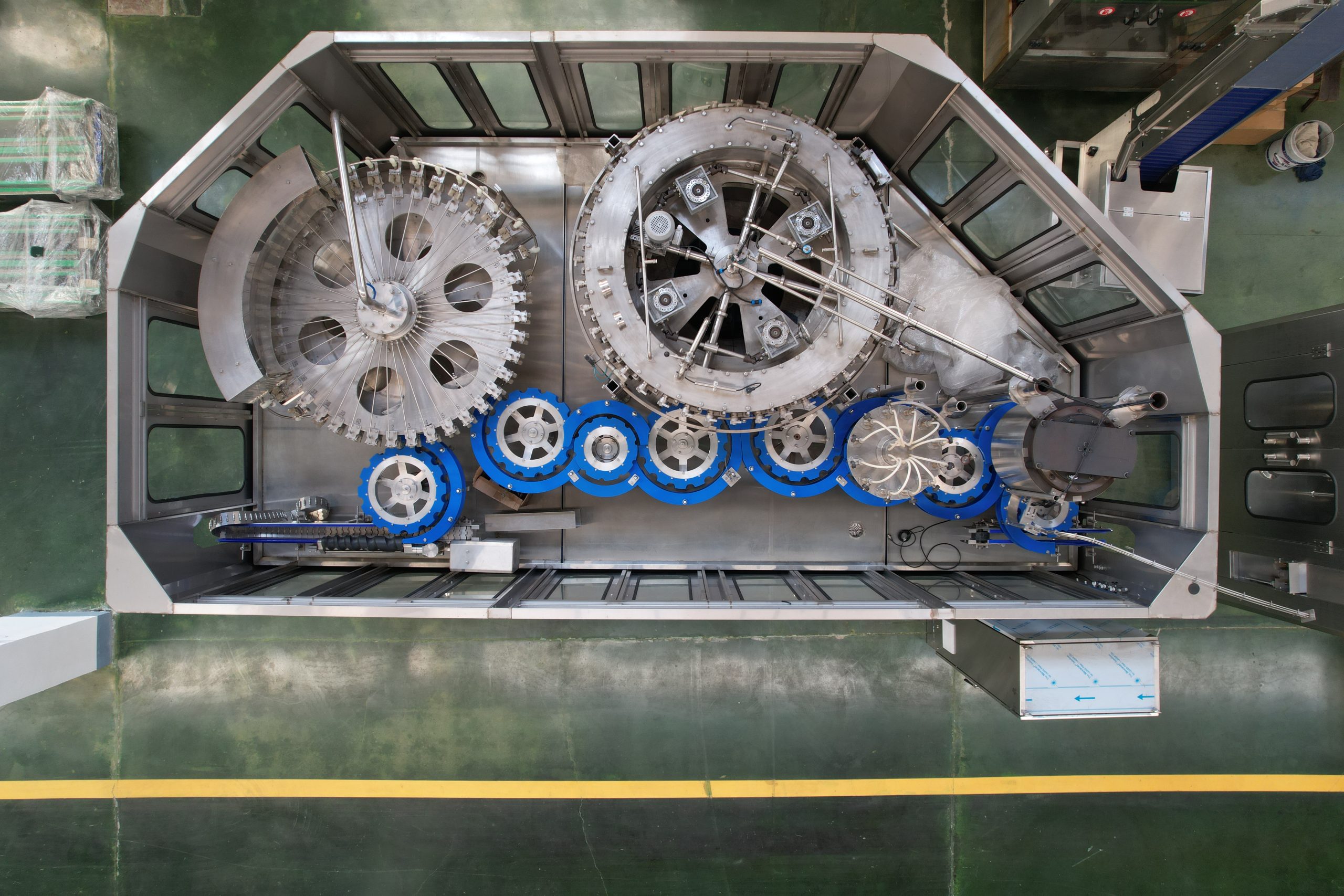

Product Detail

Technical Parameter

Model BXGF8-6-1  BXGF14-12-4  BXGF18-18-6  BXGF24-24-8  BXGF32-32-10  BXGF40-40-12
Capacity

(BPH)

500 1000 2000-2500 3000-4000 5000-6000 7000-8000
Filling method Isobaric filling
Filling temperature ( ℃) 0-4
Bottle type Glass bottle, bottle neck:θ50-90mm, bottle height:θ150-300mm
Main power (KW) 0.37 2.2 3.0 4.0 5.0 5.5
Size (M)

(L*W*H)

1.8*1.4*2.65 2.2*1.9*2.75 2.6*2.1*2.75 2.7*2.2*2.75 4.1*2.4*2.75 4.2*3*2.8
Weight (KG) 1500 2500 3500 5000 7500 9000

Product Description

  1. With high precision mechanical filling valves. Our BGF Beer washing filling capping 3-in-1 unit stops vacuum when there are no bottles.
  2. The BGF beer washing filling capping machine is equipped with external mechanical valve, inside which there is no spring or sealing element.
  3. With high pressure frothing device, it is capable of double vacuum-pumping.
  4. The BGF beer washing filling capping machine makes use of combined transmission stepless speed control, extending the speed modulating scope.
  5. The machine has an automatic lubricating device so that the lubrication points can be automatically lubricated regularly in time. Our beer filling machine has high transmission efficiency, low noise and long lifetime.
  6. In case of the blowout due to poor quality of the bottles during gas or beer filling, the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.
  7. With a full stainless steel magnetic hopper, the unscramble machine , feeding and discharging of crown caps are all performed by magnetic force. The caps are free from deforming, and can flow smoothly in large quantities during transmission,with the function of pre-covering which allows stable and reliable bottle transferring.
  8. The capper has the function of automatic loading, which helps lower the bottle breakage.
  9.  For the centering guide of our BGF beer washing filling capping machine. We adopted double guide-bar mechanism, with the function of pre-covering which allows stable and reliable bottle transferring.
  10. The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different size.
  11. The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.

Main configuration

No Name Brand
1 Motor China
2 Motor in cap sorter China
3 Rinsing pump Nanfang, Hangzhou
4 Magnetic valve Airtac, Taiwan
5 Cylinder Airtac, Taiwan
6 Air parts Airtac, Taiwan
7 Frequency convertor Siemens
8 Transformer China
9 Photoelectric switch AUTONICKS
10 Proximity switch AUTONICKS
11 PLC Siemens
12 Touch screen Siemens
13 Pnuemtic parts Airtac, Taiwan
14 AC contactor Schneider
15 Microrelay Schneider

Our factory

After Sales Service

1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.

FAQ

Q: Are you a trading company or a manufacturer?
A: We are a direct-operated factory located in Zhangjiagang City so we can provide you with high-quality machines at a reasonable price, welcome to visit us.

Q: Are all your products produced by yourself or compressed by purchasing other products?
A: We have independent R&D and production teams focusing on manufacturing machines, and we have our own processing center, and all products are manufactured by our technical team.

Q: What is the capacity of your factory?
A: About 100 production lines per year.

Q: How about spare parts?
A: We will send one year’s worth of easily damaged spare parts with the machine and ship them together. During the warranty period, we will provide spare parts at a cost including freight.

Q: How long does it take to install?
A: According to your machine order, we will send one or two engineers to your factory, which takes about 5 days to 25 days.

Q: How to install the machine after it arrives?
A: We will send engineers to your factory to install the machine and train your employees how to operate the machine.

Q: When can I get the machine after payment?
A: Usually the production time is about 30-60 days, depending on the type of machine you ordered. The shipping time is subject to your port of destination.

Q: If we buy your machine, what is your guarantee or warranty on the quality?
A: We provide you with high-quality machines with a 1-year warranty and lifetime technical support.
