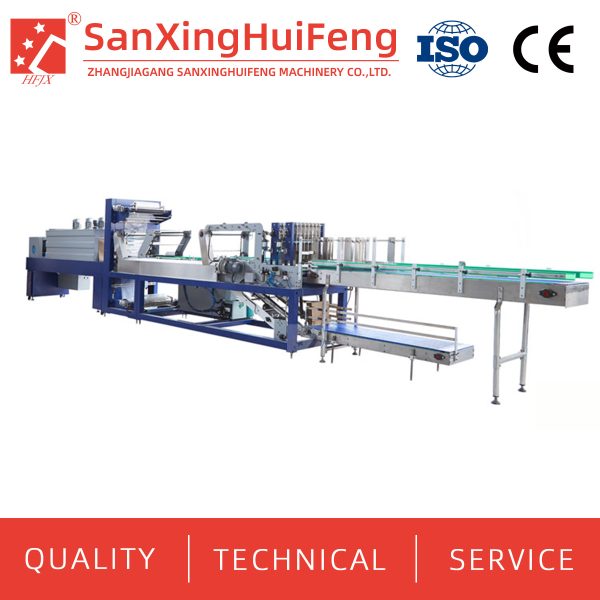

Automatic Linear Type Film Shrink Wrapping Machine With Half Tray

Overview

The carton packaging line opens, packages and seals cartons full of regular or flat glass and plastic bottles. This carton packaging machine is used to package food, beverages, medicine, cosmetics, fertilizers, and chemicals.

Video Description

Description

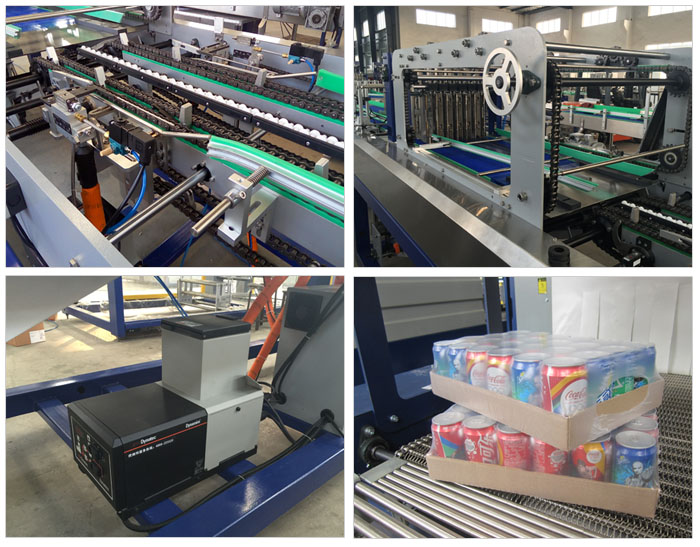

1. Bottles coming out of the production line directly enter the buffer conveyor.

2. A certain number of bottles are placed in the buffer part, and then the grouping and sorting mechanism divides them into the required packaging specifications.

3. The cardboard is placed at a specific point through the automatic cardboard sorting mechanism, and the packaging specifications are formulated according to the packaging combination through conveying and placed on the cardboard.

4. Then it is laminated, sealed, pressed, shrunk and cooled through conveying.

Main Features of Automatic Linear Type Film Shrink Wrapping Machine With Half Tray

1. The equipment adopts a straight-line optimized shape design, beautiful shape, and reduced floor space.

2. The main body of the equipment is mainly made of high-quality carbon steel, and some are made of stainless steel.

3. The electrical system adopts imported PLC programmable control, the transmission process adopts imported inverters, and the whole machine operation process adopts imported touch screen control, so that the equipment action control enters an intelligent state, the action is monitored, and various alarms and states are displayed, making the equipment operation safer and more reliable, and can be single-step action, easy to debug and maintain. The equipment is equipped with automatic alarm devices and special protection functions to further improve the safety and reliability of the equipment.

4. Pneumatic components are selected from Taiwanese brands.

5. The robot is used for automatic cardboard feeding.

6. The main electrical components are all imported or domestic high-quality brands.

7. Traction film feeding: the film feeding speed is adjusted automatically.

Heat shrink machine:which is corrosion-resistant, stable, adjustable speed, PLC control, adjustable temperature, and unique hot air treatment to make the packaging shrink beautiful.

Technical Parameter

1 Max   packing size L600×W400×H350mm
2 Mini   packing size L210×W140×H100mm
3 Material of shrink film PE,PVC
4 Thickness of shrink film 0.03-0.15mm  Max width 600mm
5 Highest temperature of the heat   shrink furnace 160-260。 (Can adjust freewill)
6 Max Capacity 5 packs/min
7 Packing/Shrinking power consumption 6/22-28   kw
8 Working   pressure 0.6-0.8   Mpa
9 Air   consumption 0.3m3/min
10 Weight 2000kg
12 Dimension   (mm) L10000×W2480×H1950

Our factory

After Sales Service

1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.

FAQ

Q: Are you a trading company or a manufacturer?
A: We are a direct-operated factory located in Zhangjiagang City so we can provide you with high-quality machines at a reasonable price, welcome to visit us.

Q: Are all your products produced by yourself or compressed by purchasing other products?
A: We have independent R&D and production teams focusing on manufacturing machines, and we have our own processing center, and all products are manufactured by our technical team.

Q: What is the capacity of your factory?
A: About 100+ production lines per year.

Q: How about spare parts?
A: We will send one year’s worth of easily damaged spare parts with the machine and ship them together. During the warranty period, we will provide spare parts at a cost including freight.

Q: How long does it take to install?
A: According to your machine order, we will send one or two engineers to your factory, which takes about 10 days to 25 days.

Q: How to install the machine after it arrives?
A: We will send engineers to your factory to install the machine and train your employees how to operate the machine.

Q: When can I get the machine after payment?
A: Usually the production time is about 30-60 days, depending on the type of machine you ordered. The shipping time is subject to your port of destination.

Q: If we buy your machine, what is your guarantee or warranty on the quality?
A: We provide you with high-quality machines with a 1-year warranty and lifetime technical support.
