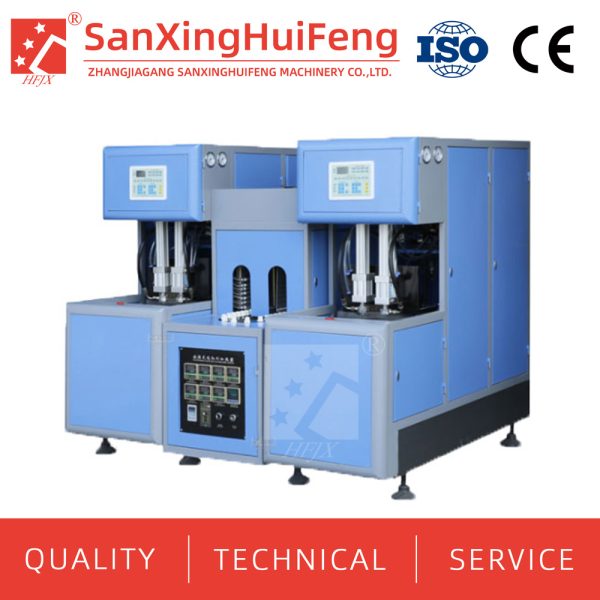

Semi-automatic PET bottle blowing machine 1500BPH

Overview

Semi-automatic bottle blowing machine is suitable for producing 100-2000ml PET plastic containers and bottles. Widely used in the production of carbonated bottles, mineral water bottles, carbonated beverage bottles, pesticide bottles, oil bottles, cosmetic bottles, wide-mouth bottles, etc.

Video Description

Description

Semi-automatic bottle blowing machine is suitable for producing 100-2000ml PET plastic containers and bottles. It is widely used in the production of carbonated bottles, mineral water bottles, carbonated beverage bottles, pesticide bottles, oil bottles, cosmetics, wide-mouth bottles, etc.
It adopts double crank mold adjustment, heavy-duty clamping, stable and fast, and adopts infrared oven to heat the preform, and the preform rotates and heats evenly.
The air circuit system is divided into two parts: pneumatic part and bottle blowing part to meet different action and bottle blowing requirements. It can provide sufficient and stable high pressure for blowing large special-shaped bottles.
The machine is also equipped with a muffler and an oil injection system to lubricate the mechanical part of the machine.
The machine can be operated in stepping mode and semi-automatic mode.
The machine is small in size, low in investment, easy to operate and safe.

Product Detail

Container Product material PET
Volume 0.1L-2L
Theoretical output 1200-1600PCS/H
Preform length 15mm-350mm
Preform inner diameter φ5mm-38mm
Moulding Max.mould plate Dimension(L x W) 350x380mm
Max.mould thickness 180mm
Clamping force 45KN
Mould opening stroke 160mm
Machine size and weight Main machine (L x W x H) 160x60x161KM
Main machine weight 500Kg
Heater (L x W x H) 187x63x145KM
Heater weight 250Kg
Power 17.5kw



High pressure air compressor:

Function: Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure

Air compressor Unit 1.2M3/min 30KG
Volume M3 1.2
Pressure Kg 30
Speed r/min 850
Power KW 15
Overall Dimension mm 2000*1100*1600
Weight kg 620

Air Cooling Drier

Function :Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.



Refrigeration Air Dryer Unit 2.0M3/min 3.0Mpa
Flow capacity Nm3/min 2.0
W.P Mpa 3.0
Inlet Temp. ≤80
Dew point 23
Ambient Temp. ≤38
Power supply V/HZ 220/50
Compressor power Kw 0.75
Cold Medium mm 1050×650×1100
Weight Kg 120

AiFilter

Functions: Air filter is to clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.



Refining-Filter Unit 2.0M3/min 30Kg
Flow Capacity M3/Min 2
Max. work pressure Mpa 3.0
Inlet Temp. ≤50
Cold Medium mm 750*350*350
Weight Kg 20

Our factory

After Sales Service

1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.

FAQ

Q: Are you a trading company or a manufacturer?
A: We are a direct-operated factory located in Zhangjiagang City so we can provide you with high-quality machines at a reasonable price, welcome to visit us.

Q: Are all your products produced by yourself or compressed by purchasing other products?
A: We have independent R&D and production teams focusing on manufacturing machines, and we have our own processing center, and all products are manufactured by our technical team.

Q: What is the capacity of your factory?
A: About 100 production lines per year.

Q: How about spare parts?
A: We will send one year’s worth of easily damaged spare parts with the machine and ship them together. During the warranty period, we will provide spare parts at a cost including freight.

Q: How long does it take to install?
A: According to your machine order, we will send one or two engineers to your factory, which takes about 5 days to 25 days.

Q: How to install the machine after it arrives?
A: We will send engineers to your factory to install the machine and train your employees how to operate the machine.

Q: When can I get the machine after payment?
A: Usually the production time is about 30-60 days, depending on the type of machine you ordered. The shipping time is subject to your port of destination.

Q: If we buy your machine, what is your guarantee or warranty on the quality?
A: We provide you with high-quality machines with a 1-year warranty and lifetime technical support.
